Choosing the Right Corrugated Flute for Your Packaging
Understand corrugated flute charts, thickness, and flute sizes to choose the best packaging material for your products. Learn from GUKA Packaging experts.
Table of content
Why Flute Structure Matters in Corrugated Packaging
Corrugated packaging is one of the most widely used solutions for protecting and shipping products. From skincare and apparel to electronics and coffee, almost every industry relies on it. But what gives corrugated boxes their strength isn’t just the material—it’s the structure inside.
The key structural element is the flute, the wavy paper layer sandwiched between flat sheets. These flutes come in different thicknesses and densities, and the right one can mean the difference between a product arriving perfectly or damaged. In this article, we’ll walk through the corrugated flute chart, explain each flute’s function, and help you choose the best board for your needs.
What Is a Corrugated Flute Chart?
A corrugated flute chart is a reference tool used to understand the types, sizes, and performance of fluted cardboard. Each type of flute—F, E, B, C—is measured by its thickness and how many flutes appear per foot. These details determine cushioning, stacking strength, and print surface quality.
Flutes can be used alone or combined (e.g., E/B or B/C) to create stronger multi-layer boards. The chart below reflects the accurate flute thicknesses from the reference image you provided.
This chart isn’t just for technical use—it helps businesses make decisions based on real-world requirements like shipping durability, product fragility, and packaging presentation. As packaging evolves, so does the importance of understanding your materials on a deeper level.

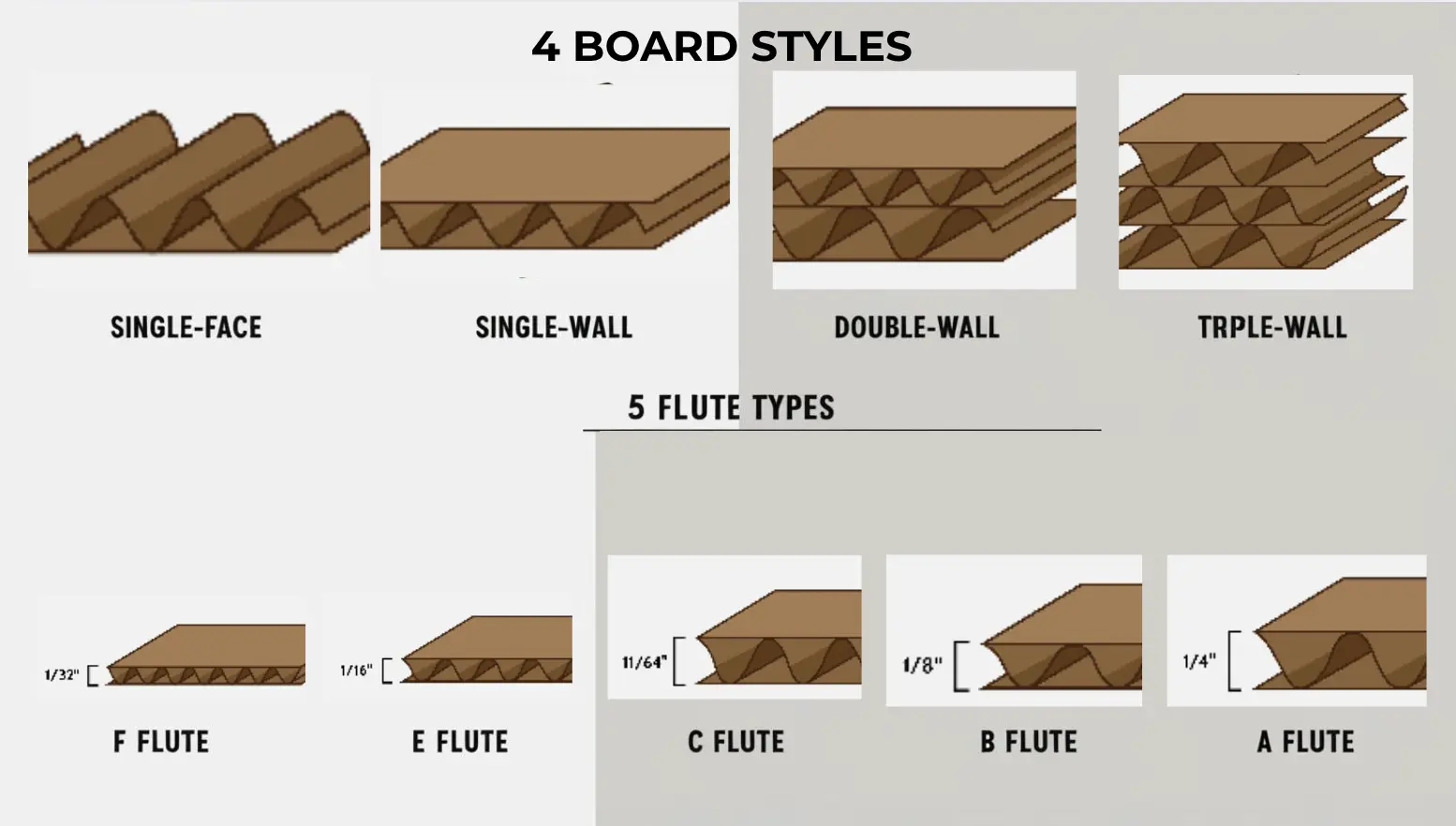

Corrugated Flute Thickness and Size Chart (Updated to Match Image Data)
Single, Double, and Triple Wall: What’s the Difference?
- Single Wall Board: One layer of flute and two liners. Lightweight and cost-effective. Used in most retail and midweight product shipping applications.
- Double Wall Board: Two layers of flutes and three liners. Offers better compression strength and durability. Popular for heavier goods or items traveling long distances.
- Triple Wall Board: Three flute layers and four liners. Extremely strong—used for industrial packaging or when wooden crates are being replaced by cardboard.
Understanding the difference helps companies decide which board structure best supports their supply chain and product handling process.
Choosing the Right Flute for Your Business
When evaluating corrugated flute chart PDF references or comparing options, keep these factors in mind:
- Product Fragility – Fragile glassware? Go for B/C or E/C flute.
- Shipping Method – International? Double wall. Local delivery? Single wall may suffice.
- Visual Branding – Choose E or F flutes with white-top liner for premium print.
- Storage Space – Thin flutes like F save warehouse space and lower dimensional weight costs.
Also consider handling frequency. If your packaging goes through multiple hands or automated sorting systems, stronger flutes offer peace of mind.
When Should You Use Each Double Wall Flute Combo?
- F/E Flute (2.6 to 2.9 mm): Thin profile, great print surface, and still stronger than single wall. Ideal for luxury packaging like cosmetics, perfumes, and candles.
- E/B Flute (3.6 to 4.1 mm): Perfect for retail boxes that require both strength and aesthetics. Often used in subscription boxes, skincare kits, and apparel packaging.
- E/C Flute (5.0 to 6.5 mm): Suitable for delicate items shipped in bulk like glass cups, handmade ceramics.
- B/C Flute (6.0 to 7.6 mm): Used for industrial or long-haul logistics—appliances, electronics, export shipments.
How to Know If You’ve Picked the Wrong Flute Type
Common signs you might have chosen the wrong flute:
- Box is too large due to over-thick board.
- Poor print quality from coarse flute surface.
- Box collapses under pressure from incorrect flute direction.
Choosing the correct flute protects your product, saves money, and reduces environmental waste.
Frequently Asked Questions (FAQs) to Corrugated Box
Q1: What’s the difference between corrugated and fiberboard cartons?
A: Corrugated includes flutes for strength and cushioning. Fiberboard is solid and rigid—used in rigid boxes, not shipping cartons.
Q2: Which flute is best for eco-friendly packaging?
A: E and F flutes use less paper and are easier to recycle. Combine with recycled kraft paper for full sustainability.
Q3: Can I print high-quality graphics on thick flute boards?
A: Yes, it is technically possible to print on thicker flute boards such as B or C flutes, but they are not ideal for detailed or photo-quality graphics due to their uneven surface texture. Smoother flutes like F or E offer a flatter printing surface, allowing for sharper colors, better registration, and more precise logo reproduction. For premium packaging—especially in cosmetics, skincare, and luxury retail—these flutes provide the necessary finish and feel that reflect the brand image effectively.
Q4: When should I use single corrugated cardboard?
A: When your product is light, durable, and requires less protection. Ideal for inner packaging or low-risk shipping. For example, if you're packaging a small tube of hand cream or a compact eyeshadow palette, using a thin single-wall E-flute box inside a rigid gift box can provide just enough support while keeping the unboxing experience elegant and compact.
GUKA’s Role in Custom Corrugated Box Design
At GUKA Packaging, we guide you through material selection, custom structure design, and production. Whether you’re shipping chocolate, cosmetics, electronics, or apparel, we help you choose:
- The best types of carton packaging
- A flute that balances performance and budget
- Inserts that protect and organize
- Coatings and finishes that reflect your brand
We also test box performance across real-life handling simulations, helping you avoid damage-related costs or delivery problems.
Use the Flute Chart as a Strategic Tool
The corrugated flute chart is a strategic asset for any packaging decision. When you match your product’s needs with the right flute, you enhance safety, presentation, and efficiency. Don’t let packaging be an afterthought. Let GUKA packaging help you design smarter, stronger, more beautiful boxes.
